Description
Attributes
- Adjustable: Yes
- Valving Type: Application Specific Valving
- Shock Type: Gas Charged
- Upper Mounting Type: Strut
- Lower Mounting type: Cross Pin
- Front/Rear Drop (IN): 3 To 4-1/2 Inch Lift
- Extended Height (IN): 23.44 Inch
- Compressed Height (IN): 17.95 Inch
- Shock Body Color: Black
- Shock Body Material: Aluminum
- Quantity: Set Of 2
- Spring Color: Black
Product

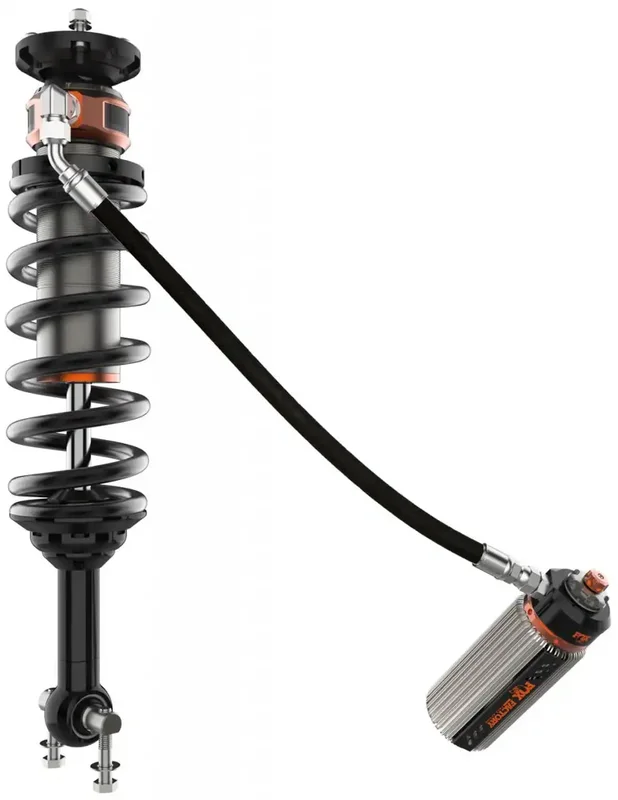

FOX Factory Race Series 3.0 Internal Bypass shocks for the Ford Bronco deliver position-sensitive damping technology, Dual Speed Compression (DSC) adjustment, and high-speed ready performance in a bolt-on kit. Patented Internal Bypass technology allows for multiple zones of damping control. The result is a comfortable, confident ride with increased damping force through rough terrain. Internal bypass shocks produce more force progressively to control hard bottom-outs, prevent harsh top-outs, and provide an initial catch for landing. Shock fluid bypasses the main piston through a series of bleed holes in the ride zone. As the shock extends past the ride zone in rebound or compression, the bleed holes terminate, forcing fluid through the main piston. Finned external reservoirs and aluminum shock bodies keep shock fluid temperatures cool for better performance. Type III anodization prevents corrosion and wear of the 3 Inch diameter bodies. The DSC adjuster allows you to dial in your Bronco for load, environment, and driving style.
Features & Benefits
- 3.0 Inch Impact Extruded And CNC Machined 6061-T6 Hard-Anodized Aluminum Body
- Patented, Internal Bypass Design
- Application-Specific Springs
- 7/8 Inch Hard Chrome-Plated Steel Shafts
- Vehicle-Specific Valving To Maximize Performance
- Redundant Sealing Pack System: Main Seal, Wiper Seal, Scraper Seal
- Position- And Velocity-Sensitive Damping Maximize Comfort And Control Through Any Terrain
- Tune Vehicle For Load, Environment, And Driving Style With DSC Adjusters
- Vehicle-Specific Springs Enhance Articulation And Increase Stability
- Limited 1 Year Warranty
